    Trailer pumps / Stationary pumps

    Trailer-Mounted Concrete/Shotcrete Pump



    FFH SYSTEM

    Intelligent control system switches the direction of oil flows, allowing oil to freely flow without passing through any unnecessary valves.





    ■ The oil flows in a closed circuit from the Rexroth pump to the hydraulic cylinders and returns to the pump directly, which allows higher performance and efficiency.
    ■ Our intelligent control system switches the direction of the oil flow,     allowing oil to flow freely.
    ■ Direct return of the oil to the pump prevents contamination of the hydraulic system

  •  Trailer pumps / Stationary pumps

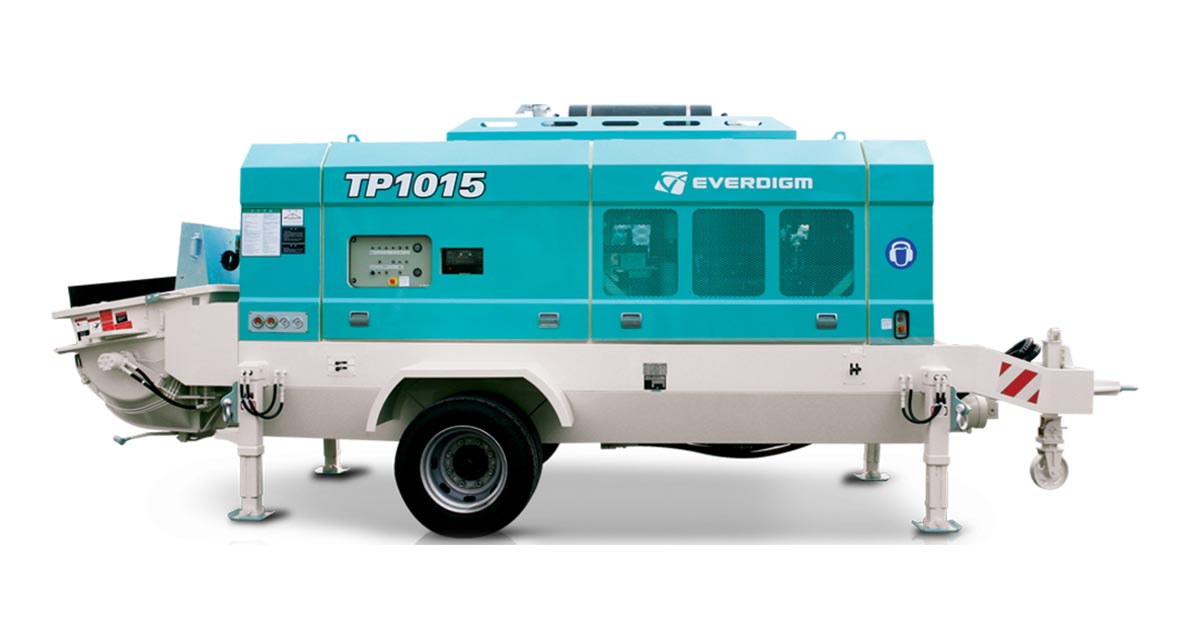

    Trailer-Mounted Concrete/Shotcrete Pump

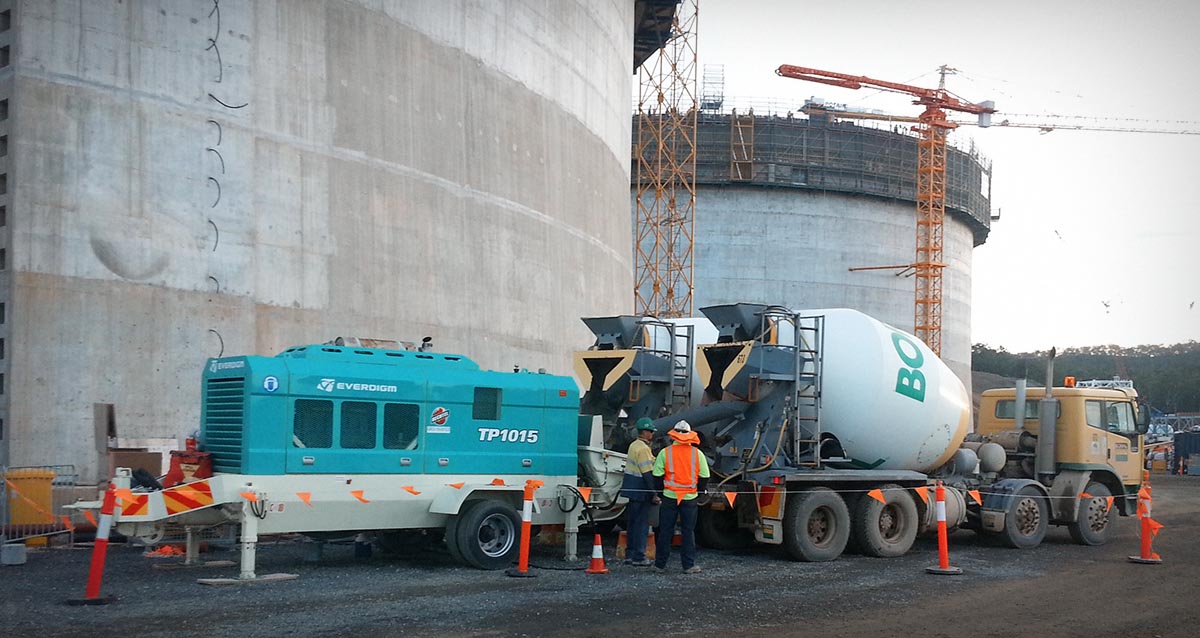

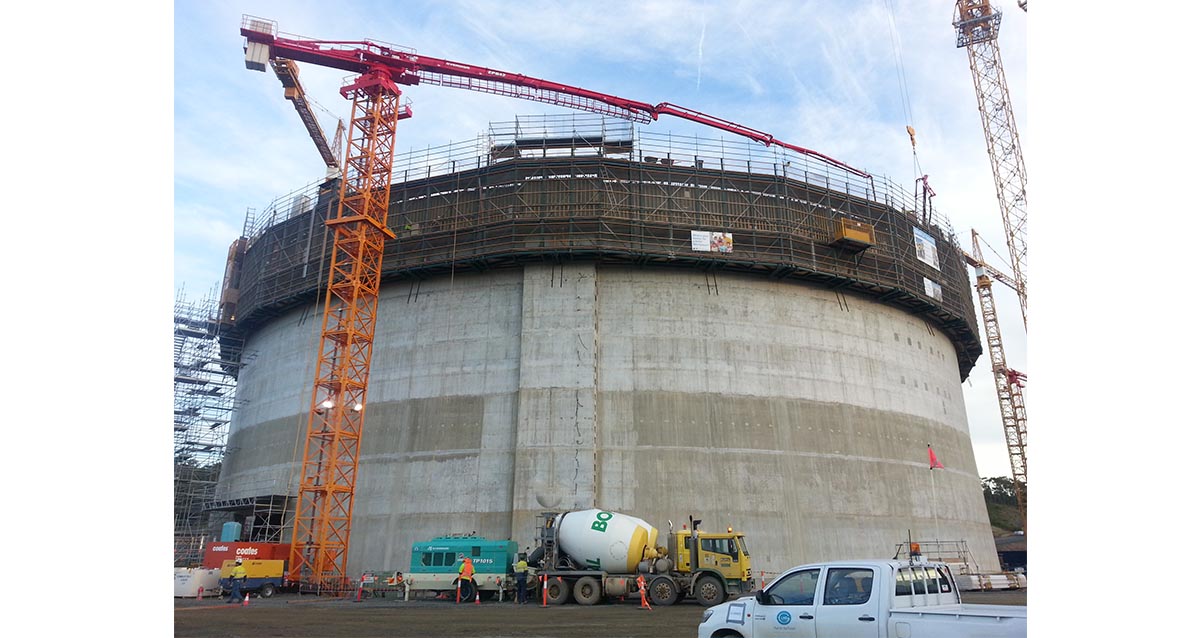

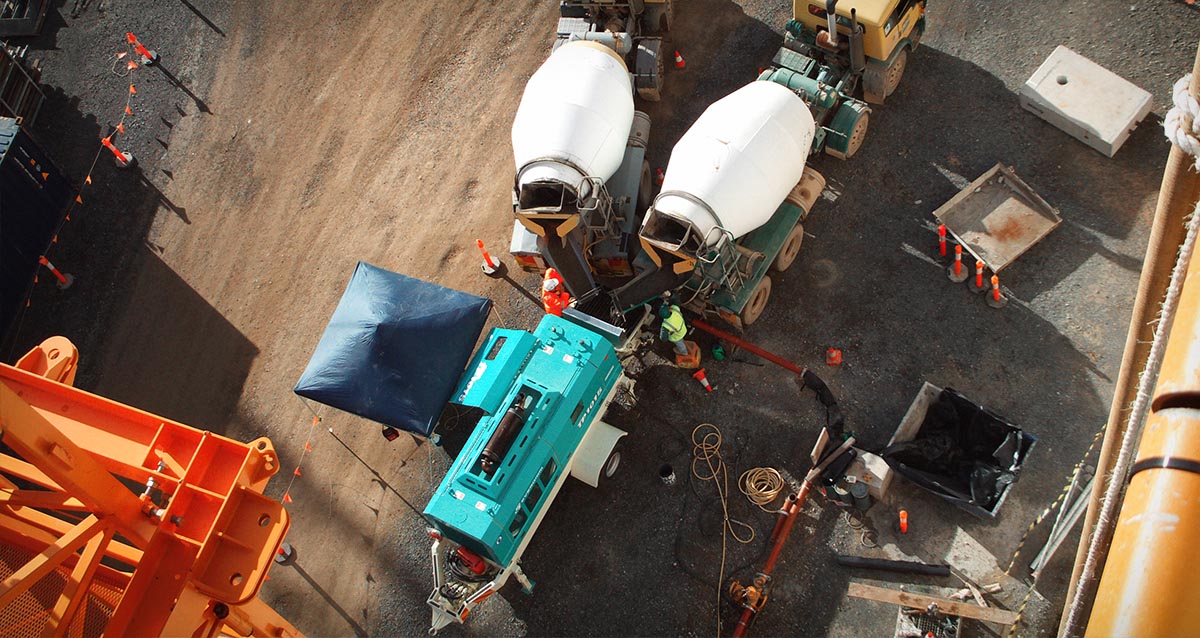

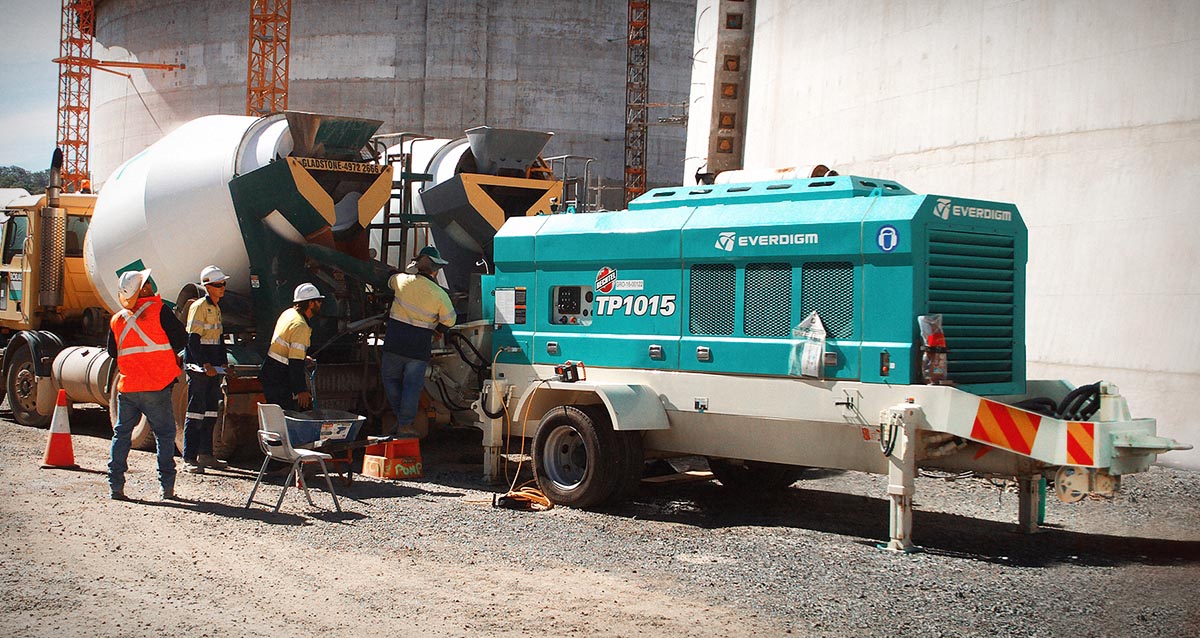

    EVERDIGM`s concrete works in Australian GLNG project (build by "Bechtel")







    Pump


     MODELTP1015
     Control SystemClosed (FFH)
     Main PumpA4VG180 X 2
     Concrete cylinder8" x 83" (Ø200 x 2,100mm)
     Drive cylinder4" x 83" (Ø160 x 2,100mm)
     S-tubeS2015 (8" x 6")
     Hopper volume 600L (159gal)
     Fuel tank capacity106gal  (400L)
     Hyd. Oil tank capacity 119gal (450L)
     Overall size (W x H x L) 105" x 109" x 297"
    (2,660 x 2,760 x 7550 mm)
     Weight20,944 / 21,385 / 23,369 lbs
     (9,500 / 9,700 / 10,600 Kg)
     Axle / Tire1 axle / 1 single tire
     max. aggregate size 1.6" (40mm)







    Performance




     ModelTP1015Under max. concrete outputUnder max. concrete pressure
    Concrete output / pressure *Rod side100m3/hr (97bar) 66m3/hr (153bar)
    　131yd3 (1,407psi)86yd3 (2,219psi)
    Piston side70m3/hr (141bar) 45m3/hr (224bar)
    　92yd3 (2,045psi)59yd3 (3,249psi)
     Vertical reach *Rod side167m / 194m / 227m123 m / 172 m / 198 m
    6,575" / 7,368" / 8,937"4,843" / 6,772" / 7,795"
    Piston side272m / 317m / 370m209 m / 289 m / 332 m
    10,708" / 12,480" / 14,567"8,228" / 11,378" / 13,071"

    * Output & Pressure is thoretical data.









    Engine



     MODELTP1015
     MAKERDOOSAN(KOREA)
     ENGINE MODELPU086TI　
     POWER 294 / 397 / 478 kW (at 2200 rpm)
     Torque 826 Nm (at 1400 rpm)
     TypeDiesel, Tier-1
