product information
Line pumps

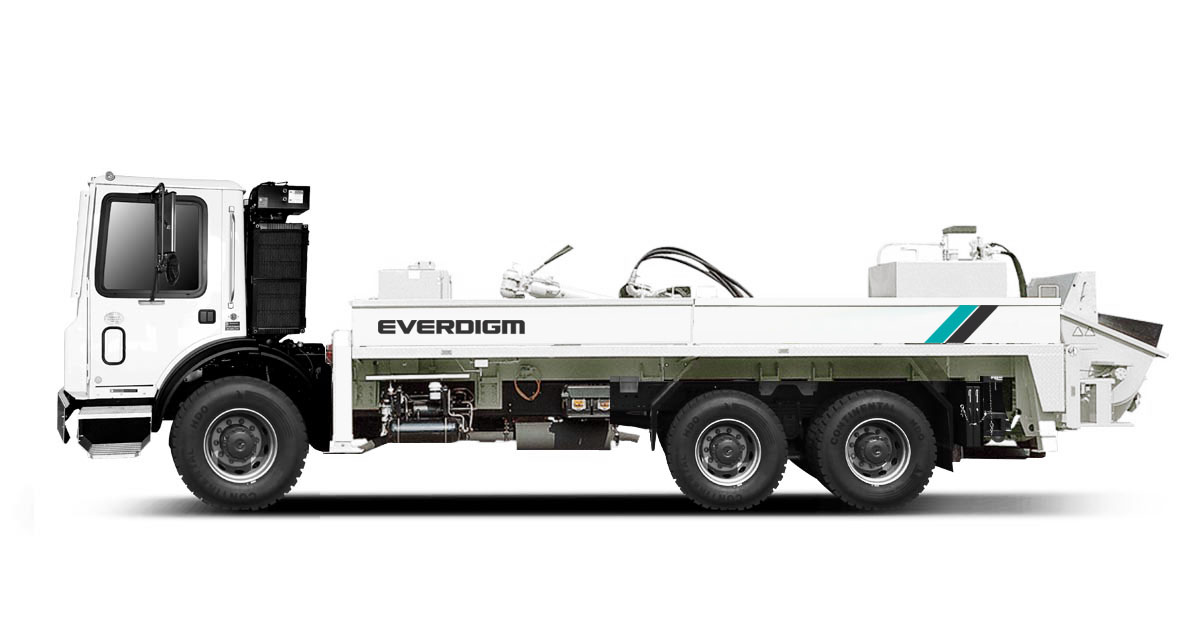

Truck-Mounted Line Pumps
FFH SYSTEM
Intelligent control system switches the direction of oil flows, allowing oil to freely flow without passing through any unnecessary valves.
■ The oil flows in a closed circuit from the Rexroth pump to the hydraulic cylinders and returns to the pump directly, which allows higher performance and efficiency.
■ Our intelligent control system switches the direction of the oil flow, allowing oil to flow freely.
■ Direct return of the oil to the pump prevents contamination of the hydraulic system
Line pumps
Truck-Mounted Line Pumps
Pump
| MODEL | LP1112 |
| Control System | Closed (FFH) |
| Main Pump | A4VG125 X 2 |
| Concrete cylinder | 8" x 83" (Ø200 x 2,100mm) |
| Drive cylinder | 4" x 83" (Ø160 x 2,100mm) |
| S-tube | S2015 (8" x 6") |
| Hopper volume | 159gal (600L) |
| Hyd. Oil tank capacity | 89.8gal (340L) |
| max. aggregate size | 1.6" (40mm) |
Performance
| Model | LP1112 | Under max. concrete output | Under max. concrete pressure |
| Concrete output / pressure * | Rod side | 100m3/hr (72bar) | 62m3/hr (116bar) |
| 131yd3 (1,044psi) | (1,682psi) | ||
| Piston side | 70m3/hr (107bar) | 41m3/hr (172 bar) | |
| 92yd3 (1,552psi) | (2,495psi) | ||
| Vertical reach * | Rod side | 3,701" (94m) | 7,047" (179m) |
| Piston side | 6,378" (162m) | 11,654" (296m) |
* Output & Pressure is thoretical data.
Engine
| MODEL | LP1112 |
| ENGINE MODEL | By chassis engine |
| Recommedable power * | More than power 370hp |
| Recommedable torque * | More than torque 150kg.m |
