ECP63CX-5

contents

product reference

Catalogue
Working Diagram
-
Spec Sheet
-
  • product information

    EVERDIGM

    Concrete Boom pump

    Truck-Mounted Concrete Pump



    FFH SYSTEM

    Intelligent control system switches the direction of oil flows, allowing oil to freely flow without passing through any unnecessary valves.



    ■ The oil flows in a closed circuit from the Rexroth pump to the hydraulic cylinders and returns to the pump directly, which allows higher performance and efficiency.
    ■ Our intelligent control system switches the direction of the oil flow,
    allowing oil to flow freely.
    ■ Direct return of the oil to the pump prevents contamination of the hydraulic system






    PUMP CELL

    Various pump cell option suitable for each job site condition.



      Pump cell(option)

    2118 (2120)

      Rod Side Output

    180 (194) m3/hr

    236 (254) yd3/hr

      Rod Side Pressure

    85 (95) bar

    1,233 (1,378) psi

      Cylinder Diameter

    230 (250) mm

    9'' (10'')

      Stroke Length

    2,100 mm (83'')

      Rod Side Strokes per Minute

    35''

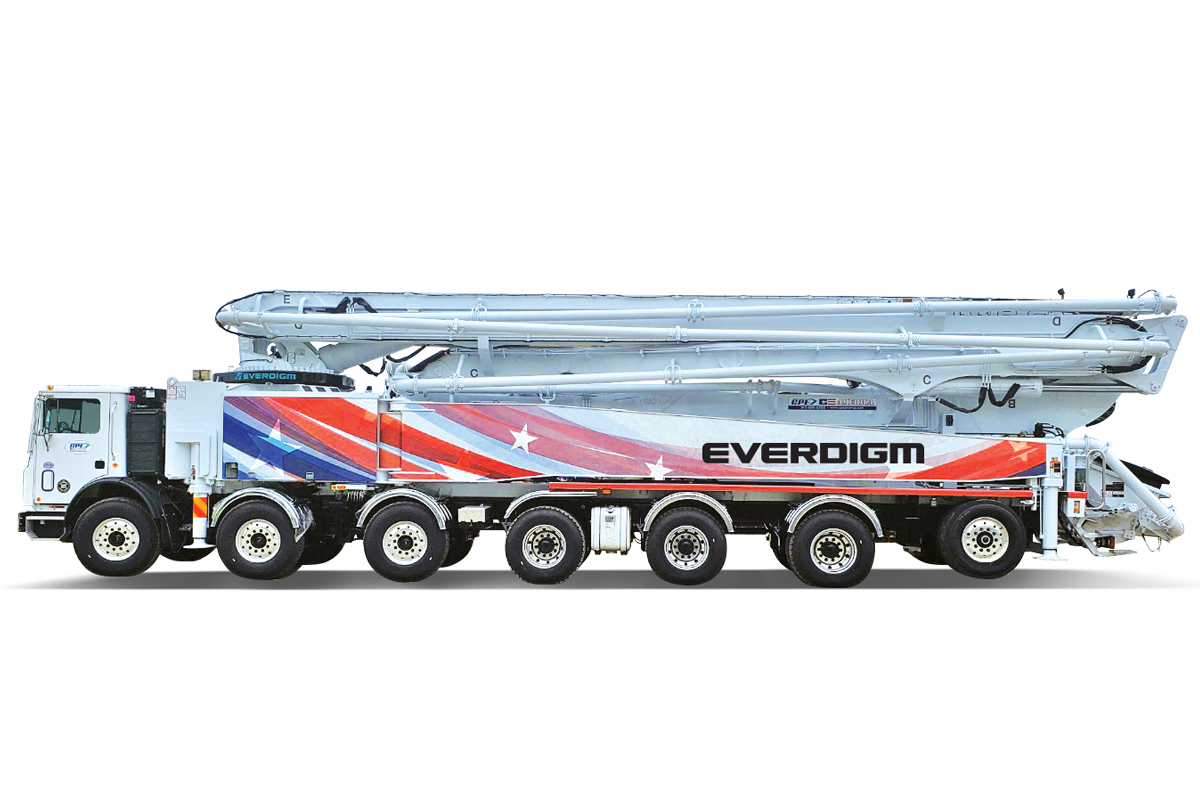

  • 63 Meter 5-section RZ-Boom

    Truck-Mounted Concrete pump







    Dimensions will vary with different truck makes, models and specifications. Varies with options selected.









    RZ-Boom Unfolding Video








    RANGE DIAGRAM













    OUTRIGGER SPREAD
