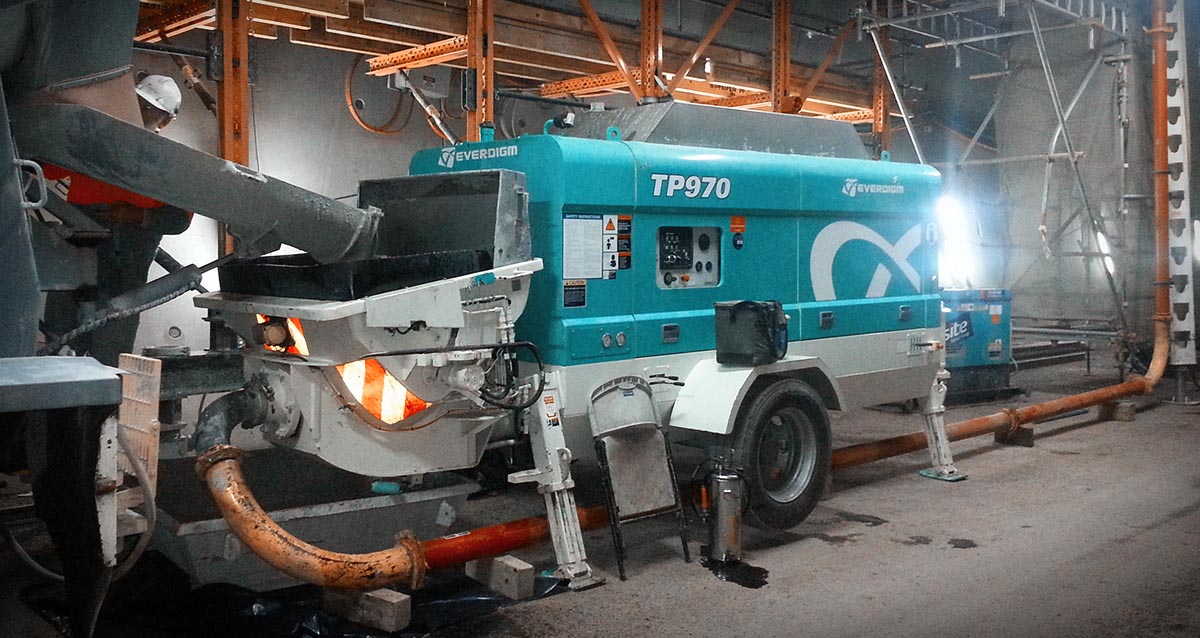

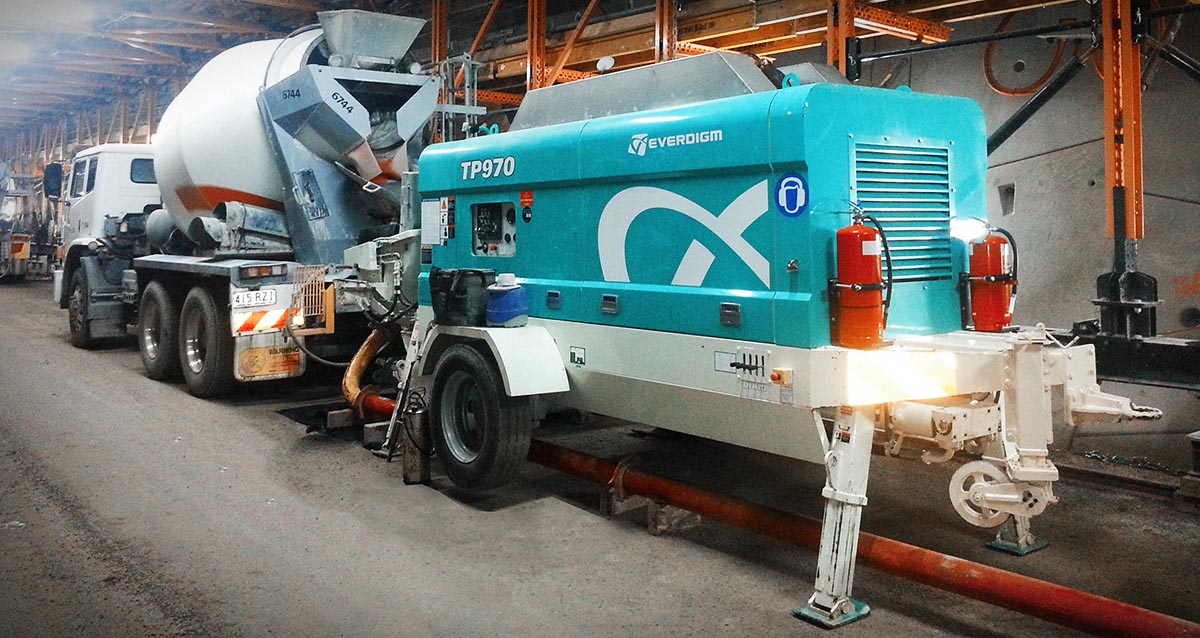

TP970

product reference

Catalogue

Working Diagram: -

Spec Sheet: -

product information

Trailer pump / Stationary pump
Trailer-Mounted Concrete/Shotcrete Pump

FFH SYSTEM
Intelligent control system switches the direction of oil flows, allowing oil to freely flow without passing through any unnecessary valves.

■ The oil flows in a closed circuit from the Rexroth pump to the hydraulic cylinders and returns to the pump directly, which allows higher performance and efficiency.
■ Our intelligent control system switches the direction of the oil flow, allowing oil to flow freely.
■ Direct return of the oil to the pump prevents contamination of the hydraulic system

Trailer pump / Stationary pump

Pump

MODEL	TP970
Control System	Closed (FFH)
Main Pump	A4VG125 X 1
Concrete cylinder	8" x 63" (Ø200 x 1600mm)
Drive cylinder	4" x 39" (Ø110 x 1600mm)
S-tube	S2015 (8" x 6")
Hopper volume	159gal (600L)
Fuel tank capacity	66gal (250L)
Hyd. Oil tank capacity	92gal (350L)
Overall size (W x H x L)	83" x 100" x 236" (2,100 x 2,540 x 6,000 mm)
Weight	12,566lbs (5,700Kg)
Axle / Tire	1 axle / 2 single tires
max. aggregate size	1.6" (40mm)

Performance

Model	TP970	Under max. concrete output	Under max. concrete pressure
Concrete output / pressure *	Rod side	90 m3/hr (50 bar)	67 m3/hr (71 bar)
		118 yd3 (1,771 psi)	88 yd3 (1,267 psi)
	Piston side	60 m3/hr (74 bar)	45 m3/hr (106 bar)
		78 yd3 (1,131 psi)	59 yd3 (856 psi)
Vertical reach *	Rod side	3,543" (90 m)	4,016" (102 m)
Vertical reach *	Piston side	6,024" (153 m)	6,535" (166 m)

* Output & Pressure is thoretical data.

Engine

MODEL	TP970
MAKER	DOOSAN(KOREA)
ENGINE MODEL	PU086T
POWER	151 kW at 2200 rpm
Torque	826 Nm at 1400 rpm
Type	Diesel, Tier-1
